Full Scale CNC Routers with 4 Axis CNC hot Wire Foam Cutters.

X- Travels from 10’ to 40’

CARBON CNC.jpg

CGR Series Routers

(Carbon Gantry Router)

Every Autoscale CNC gantry router provides unprecedented cutting areas and travels at an excellent price and features a wide range of available options to customize your machine to your exact needs. All Autoscale CNC  machines are designed, tested and built in Santa Clara California, USA.

Each carbon fiber component is molded and heat cured resulting in a very light, stiff and rigid machine. The gantry, Z carriage and Z axis weigh 1/10th of it’s same size GRX series gantry and Z axis. With less weight comes speed, accuracy and cutting 250 to 500 ipm can reduce tool path run times by 40%.

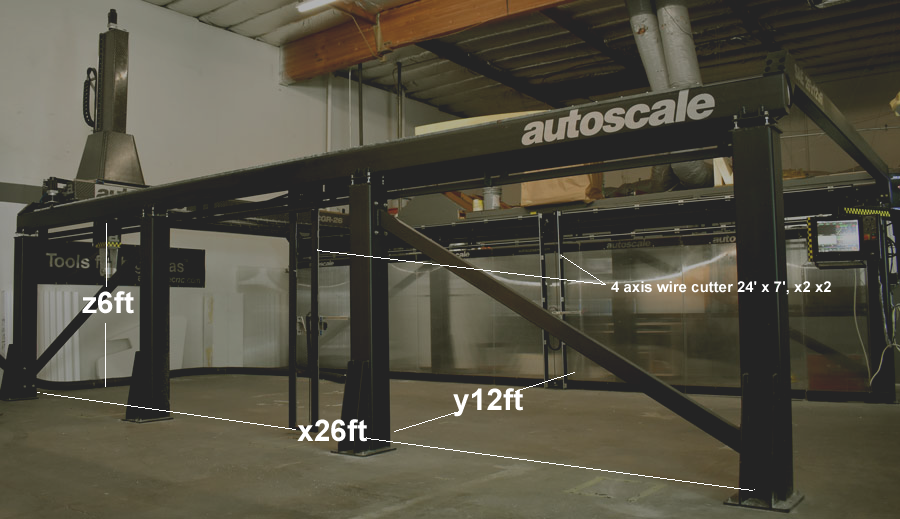

All machine chassis are built from ¼” and ½” steel plates and tubing welded and then powder coated. Machines can be installed without increased concrete footings. The above machine has the stand alone 4 Axis Hot Wire option.

Starting Price: $89,980.00

OVERVIEW



CGR CARBON FIBER Z AXIS AND Z CARRIAGE

CGR CARBON FIBER Z AXIS AND Z CARRIAGE

CARBON FIBER GANTRY & Z AXIS, LIGHT AND FAST.

Precision rails and ball screws.

Precision rails and ball screws.

PRECISION COMPONENTS




SPECIFICATIONS

Router Construction and Machine Features:

-Large travels X Axis 10’-40’ (3.048-12.192M) x Y AXIS 12’ (3.6576M) x Z AXIS 6’ (1.8288M)
-Modular Construction (Can be shipped anywhere via 20’-40’ shipping container)
-90% weight saving all carbon fiber gantry, Z axis and Z axis carriage to increase acceleration and speed
-All steel chassis with leveling X axis connecting poits
-Largest travel to machine footprint of any full scale router
-Optional 4 axis cnc hot wire foam cutter

Industrial Motion Control

∙ Large 21" display showing real-time, virtual tool-path, touch screen

∙ Rugged steel control enclosure; dust/liquid resistant

∙ Closed-loop, DSP Ethernet motion controller

∙ Perfect for industrial manufacturing, sign makers, wood working

Control Software Features

∙ Easy to use Windows-style one page navigation Learn more...

∙ Standard Fanuc-style G-code programming; use your existing CAD/CAM

∙ Adjustable block look-ahead 0-10,000

∙ Subroutine and macro B programming; user configurable M-codes

Contact:
Autoscale XYZ
info@autoscale.xyz
North America tel: 1-408.320.4972



GRX, HWX & GRW series custom routers and Hot Wire Foam Cutters

Custom designed and built for the job.

2012 MODELS.png


All Steel Construction

The GRX series are for heavier cutting jobs and frequently use for wood and composite trimmers.



A= Overal Height
B= Overal Width
c= overal Depth

Custom travel available on all axis.

Steel Gantry

Industrial Motion Control

∙ Large 21" display showing real-time, virtual tool-path, touch screen

∙ Rugged steel control enclosure; dust/liquid resistant

∙ Closed-loop, DSP Ethernet motion controller

∙ Perfect for industrial manufacturing, sign makers, wood working

Control Software Features

∙ Easy to use Windows-style one page navigation Learn more...

∙ Standard Fanuc-style G-code programming; use your existing CAD/CAM

∙ Adjustable block look-ahead 0-10,000

∙ Subroutine and macro B programming; user configurable M-codes

Contact:
Autoscale Cnc Inc.
info@autoscalecnc.com
North America tel: 1-408.320.4972
Please email us for more info and configuration options.


AVAILABLE drives systems

Rack and pinion or ball screw available.

Custom sizing on all axis

Design the router for your exact use.
